DESCRIPTION:

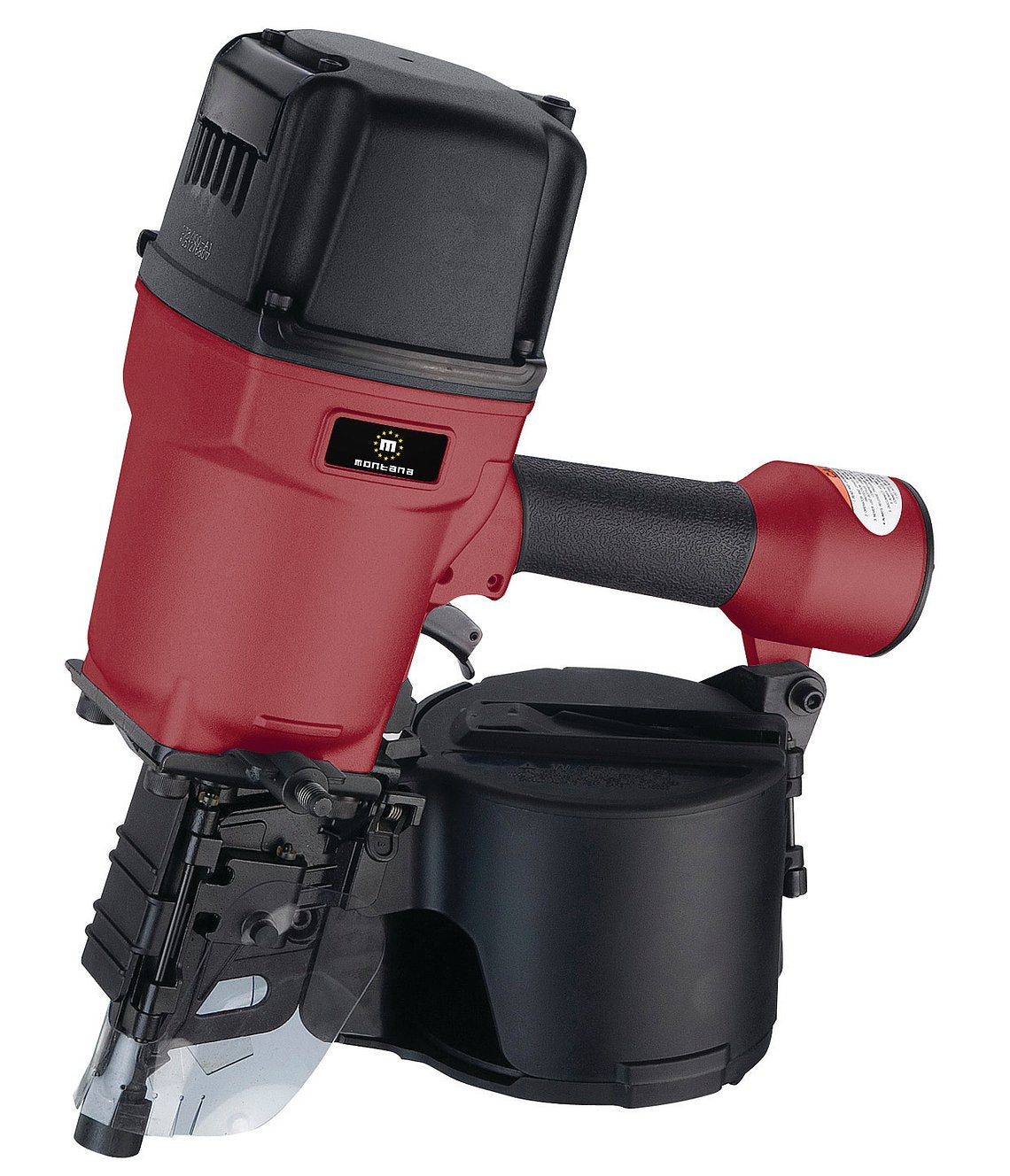

Monatana CNW38-100P/CE Construction Coil Nailer
Weight: 5.24 kgs
Dimensions: 423 x 153 x 338mm
Fires 2.5 - 3.8 Shank diameter, 15 Degree , 55-100mm length Nails
Features
- Very powerful
- Durable aluminium frame & Cylinder Cap
- Durable Aluminium frame & Cyclinder Cap
- Well balanced
- Large magazine for greater nail capacity
- Ergonomically designed
APPLICATIONS:
- Heavy duty pallet & packing cases
- Exterior decks & landscaping
- Wood to concrete/masonry, some board/wood to metal
- Heavy duty framing
Load Capacity
150-300 wire welded nails
Operating Pressure
5-8 Bar 70-100psi
Air Consumption
5.38l/cycle at 7 bar (90psi) operating pressure
Vibration
Vibration characteristic value – 5.35m/s².
Noise Level
A weighted single-event sound power level
LWA, 1s, d 89.3dB
A-weighted signle-event emission sound pressure level at work station
LpA, 1s, d 102.3dB
These values are determined and documented in accordance with EN 12549+A1:2008
