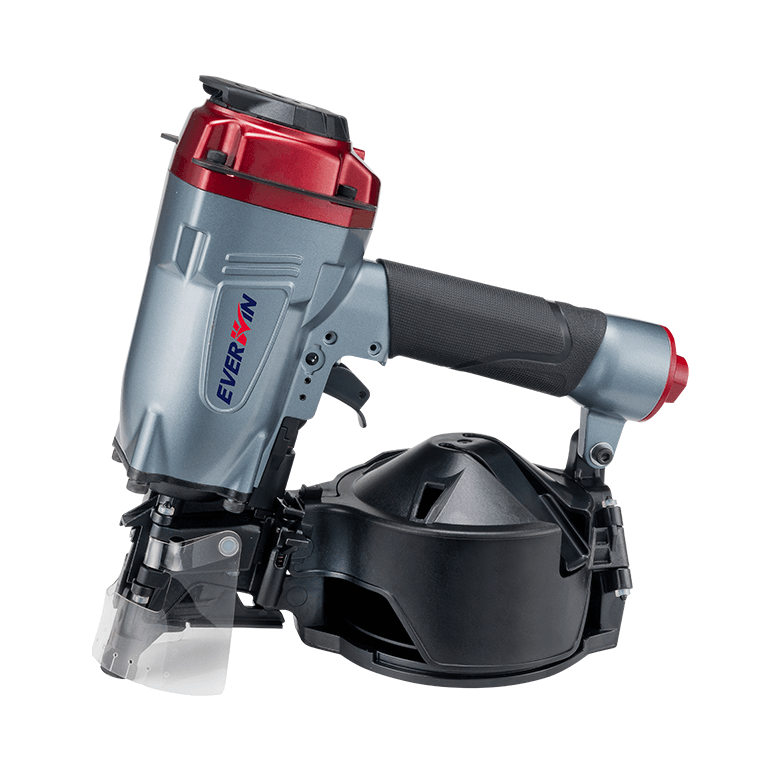

Everwin Pneumatic PN51B Coil Nailer
Everwin Pneumatic PN51B Coil Nailer
Couldn't load pickup availability
Flat & Conical Wound Pneumatic Coil Nailer, in Plastic Carry Case
Make: Everwin
Model: PN51B (updated version of PN50)
Pallet, Shed & Fencing Nail Gun
The PN51B Coil Nailer is designed to drive 25mm - 50mm nails. Built for high speed operations and designed to handle the toughest production applications.
For boxes, crates, carton-to-skid, and pallet applications.
INDUSTRY-LEADING ENERGY
420 in-lbs of driving power
SUPERME POWER-WEIGHT RATIO
HIGH SPEED OPERATION
Actuates up to 15 CYCLES/SECOND
METAL NAIL TRAY
Extremely reliable and wear-proof
TAKES CONICAL COIL NAILS
Accepts both flat and conical collated coil nails
MACHINE MOUNTING COMPATIBLE
HEAVY DUTY CONSTRUCTION
Geared for pallet and crate production
EXCLUSIVE COMPONENT
Special-treated driver and safety
METAL BODY PROTECTOR
Helps prevent drag and tear wear on the tool frame
ADJUSTABLE EXHAUST COVER
Directs air exhaust away from the user for comfort
DRIVER GUIDE MINIMIZES MAINTENANCE COST
TWO TRIGGER OPTIONS AVAILABLE:
PN51B-ST (Sequential) / PN51B-CT (Contact)
| Type | 15° & 16° Wire Collated Nails |
|---|---|
| Loading Capacity | 200-400 |
| Shank Type | Smooth, Screw or Ring |
| Nail Length | 25~50mm (1"~2") |
| Nail Head Dia. | 4.2~5.3mm (0.165"~0.209") |
| Nail Shank Dia. | 2.0~2.5mm (0.080”~0.099”) |
| Weight | 2.0kgs (4.4lbs) |
|---|---|
| Height | 271mm (10.6") |
| Width | 126mm (4.9") |
| Length | 246mm (9.6") |
| Operating Pressure | 5 ~ 8 bar (70 ~ 120 psi) |
| Driving Power (in-lbs @100psi) | 420 |
| Air Consumption (L/cycle @90psi) | 1.02 (2.16cfm) |
