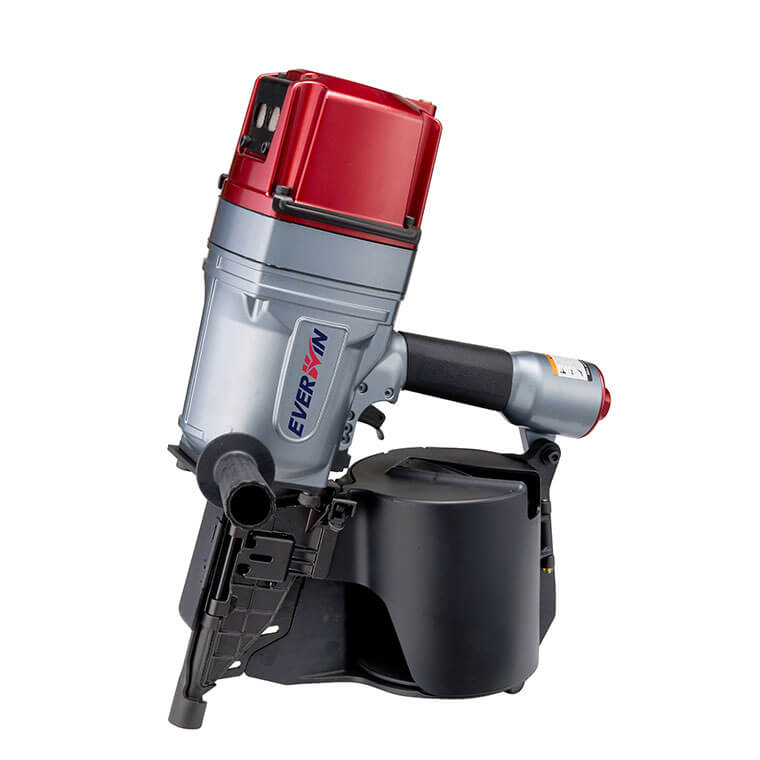

Industrial Wire Coil Nailer
The PN130B Coil Nailer is designed to drive up to a 5-1/8" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
APPLICATIONS
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly
- Manufactured Housing
- Bedding
FEATURES
SUFFICIENT DRIVING ENERGY
Powerful for heavy duty applications
AUX SIDE HANDLE
Shock-absorbent auxiliary side handle
FLEXIBLE TRIGGER OPTIONS
Available with contact fire trigger
HIGH SPEED OPERATION
Fast cycle time boosts efficiency
METAL NAIL TRAY
Extremely reliable and wear-proof
METAL BODY PROTECTOR
Helps prevent drag and tear wear on the tool frame
OVERALL STRUCTURE REINFORCED
Boosted lifespan from generation one PN130
TOOL SPECIFICATION
| Weight | 6.0 kgs (13.2 lbs) |
|---|---|
| Height | 467mm (18.4") |
| Width | 156mm (6.1") |
| Length | 338mm (13.3") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power (in-lbs @100psi) | 1811 |
| Air Consumption (L/cycle @90psi) | 3.3 (7.0 cfm) |
